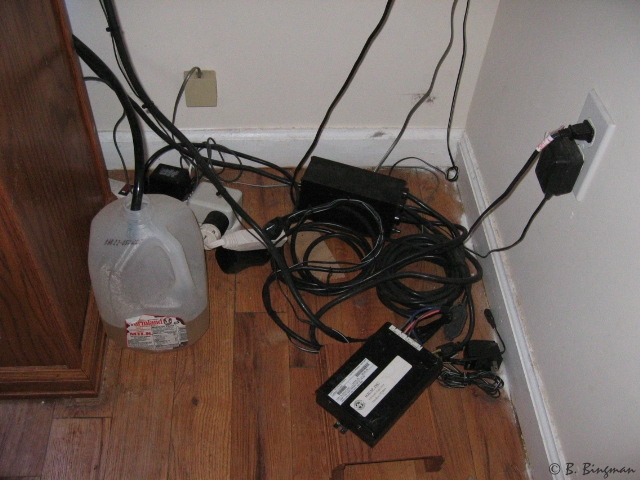

![]() | Before: Metal halide ballast, fan transformer, 2x32w PC ballast, Timer, moonlight transformer. Lots of wires. Just a mess! |

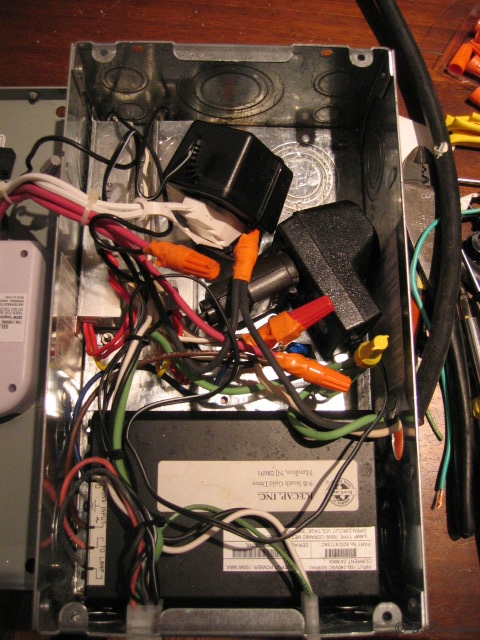

![]() | Layout: MH ballast fits, Markings for timer cutouts. |

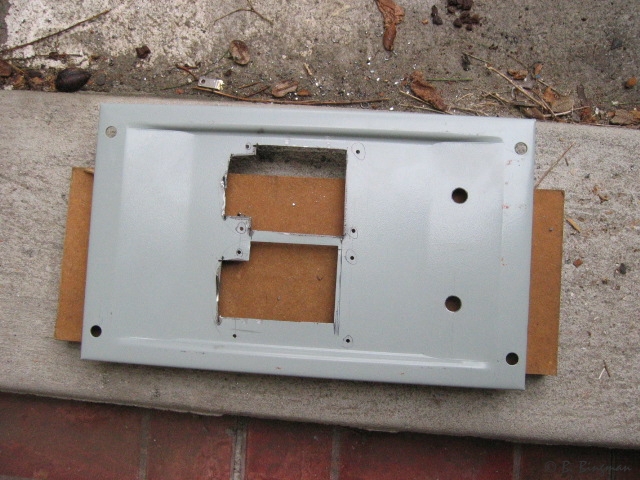

![]() | I used my roto-zip to cut the holes for the timers. Next I drilled holes for the fuge and moonlight switches. |
![]() | Timer casings were cut with a small hacksaw. (At times I wish I had a dremmel tool.) |

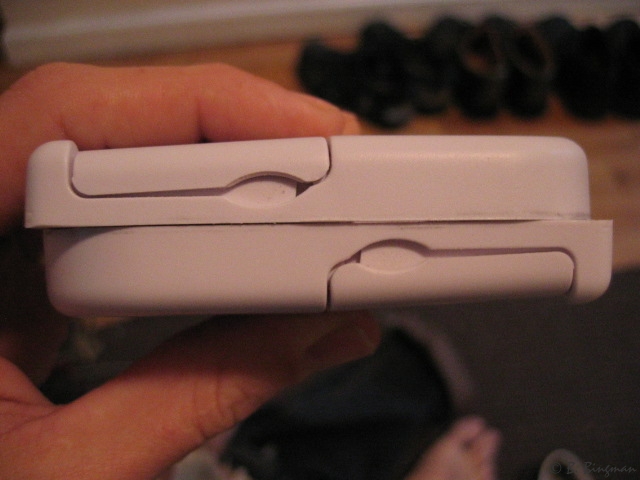

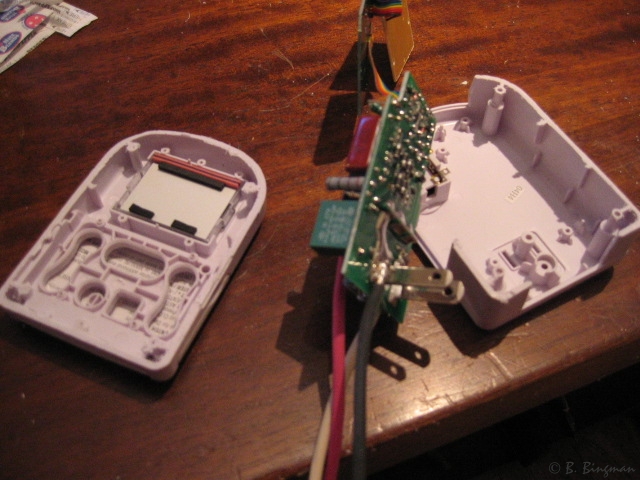

![]() | Casings were then sanded flush with a random orbital sander |
![]() | 12Ga. wire soldered onto the power contacts. Black is Line, Red is Load from Relay, and White is Neutral |

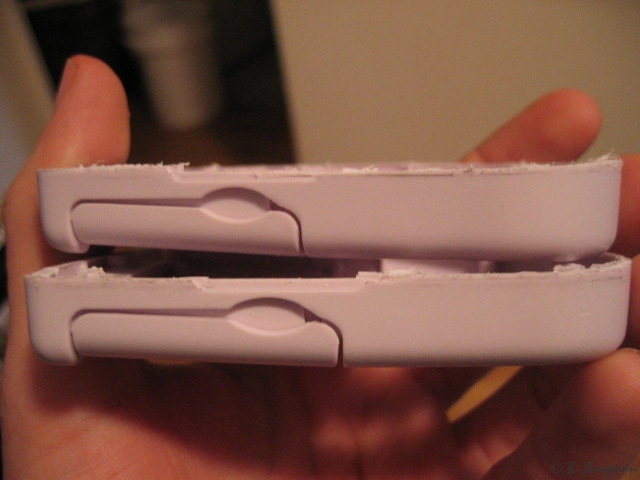

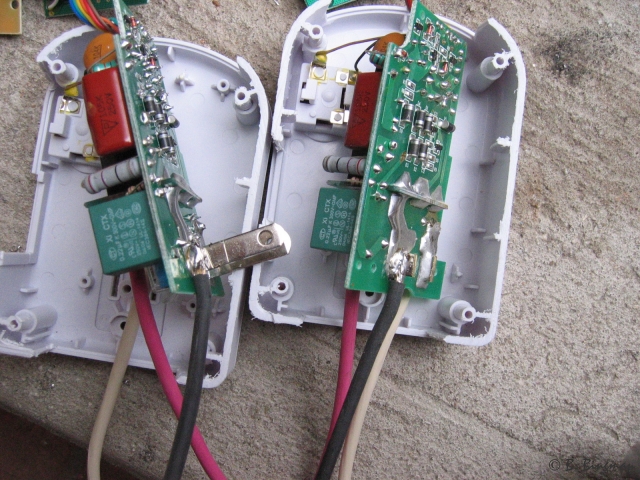

![]() | The next step was to get rid of the prongs for the plug. I used my roto-zip again. Before on the left, after on the right. |

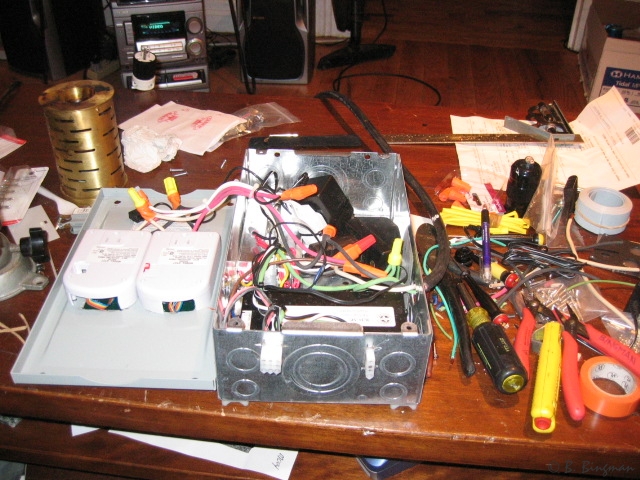

![]() | The whole thing is coming along nicely. |
![]() | From top left and going clockwise:
|

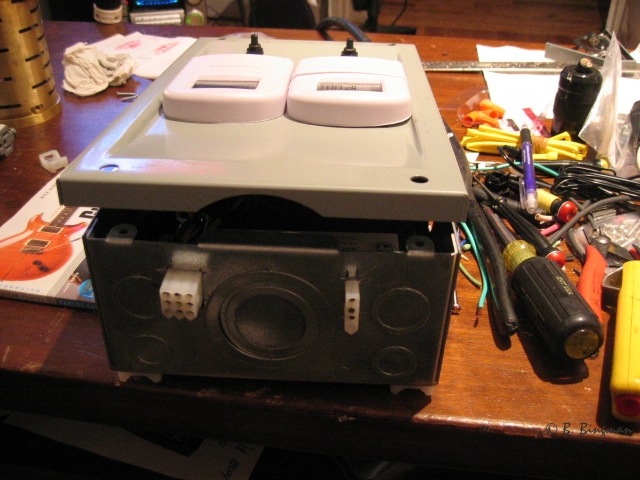

![]() | RadioShack quick connects. I don't recommend these. In the future, I'll spend a little more money and get better quality connectors. |

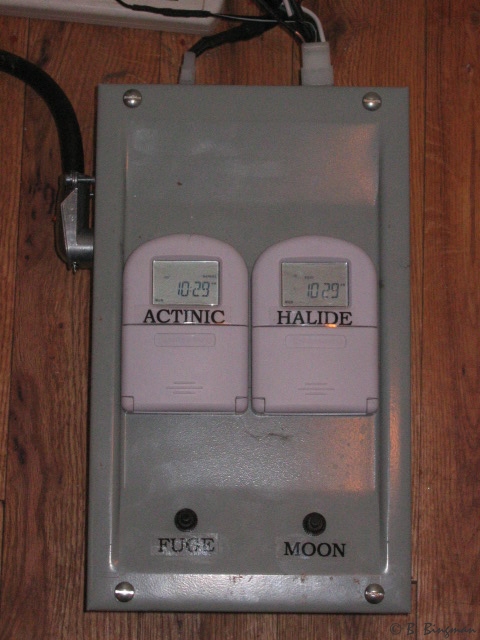

![]() | Finished box, lables applied. |

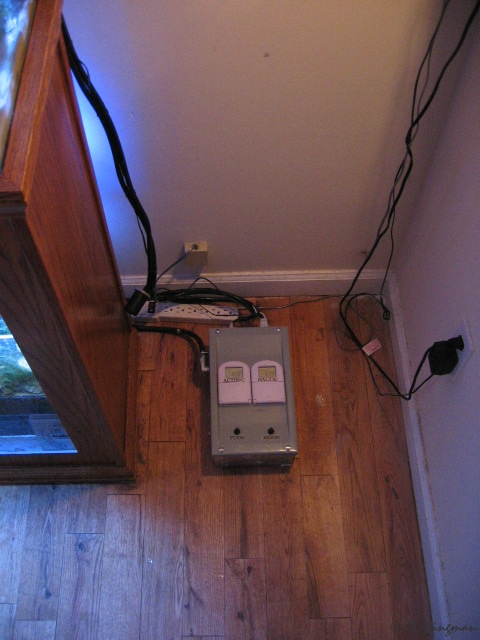

![]() | The After Picture. All cleaned up. |
